SKU:GR120-6-61
Couldn't load pickup availability
- Made in the USA
- Hassle Free Installation
- Order Tracking
- Over 40 Years Experience

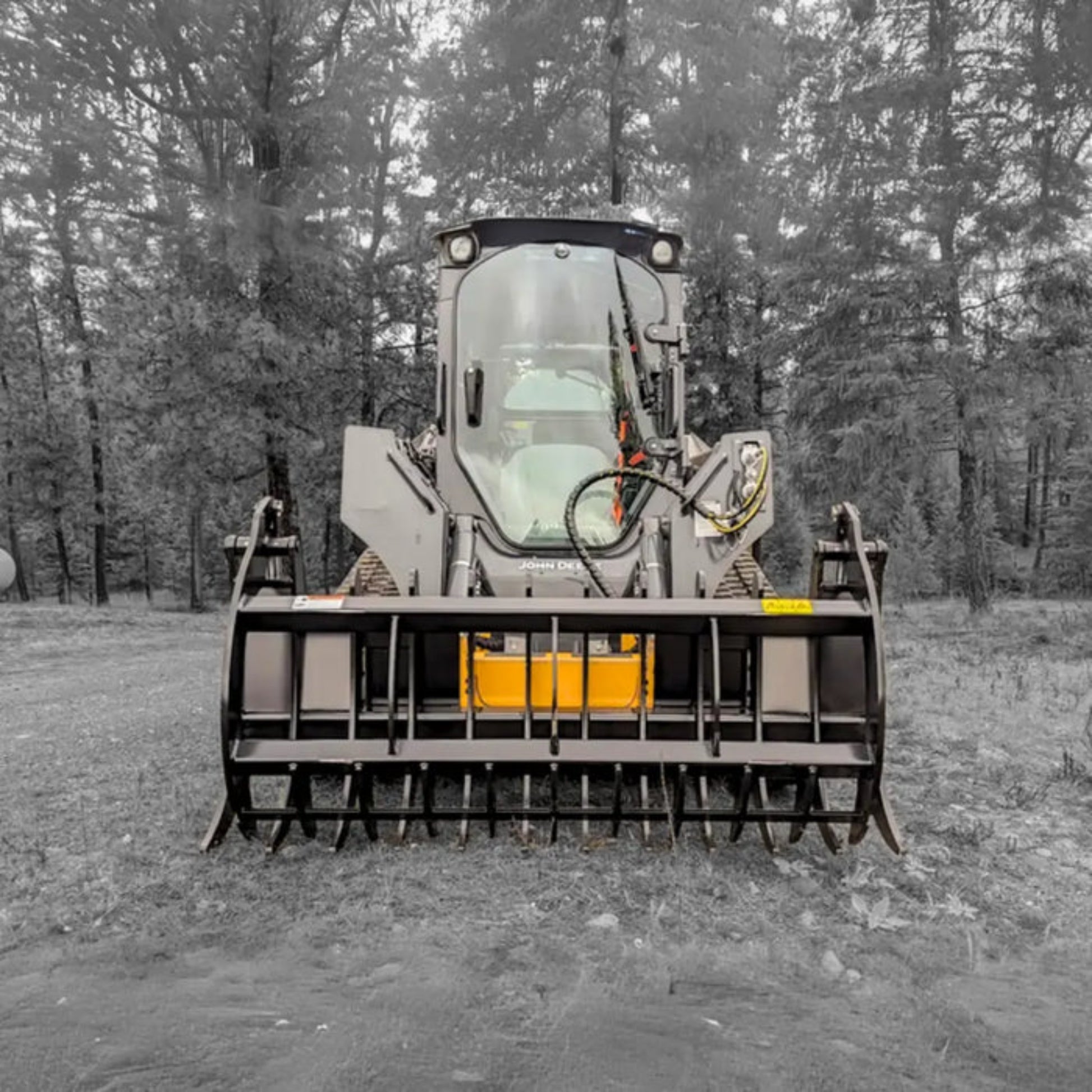

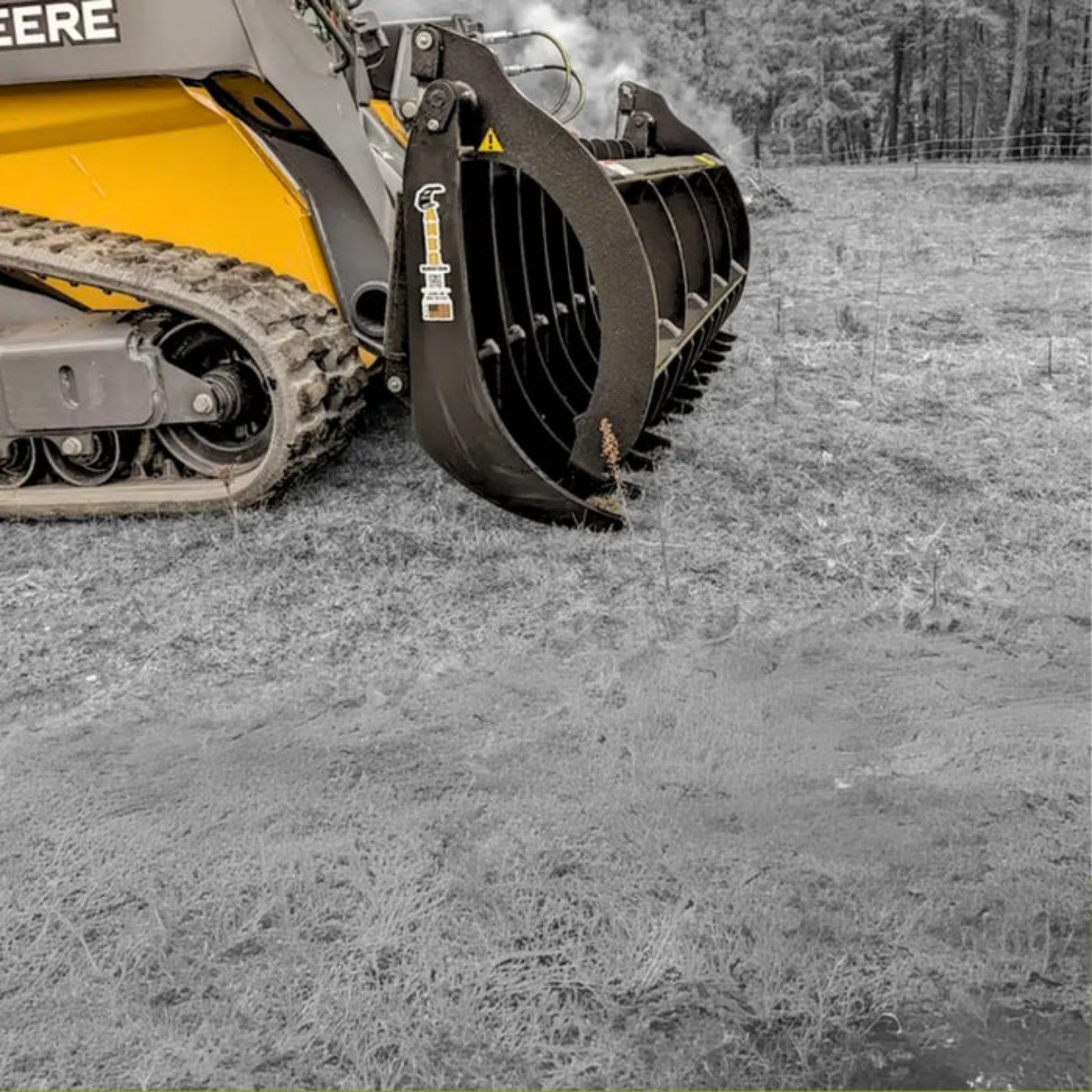

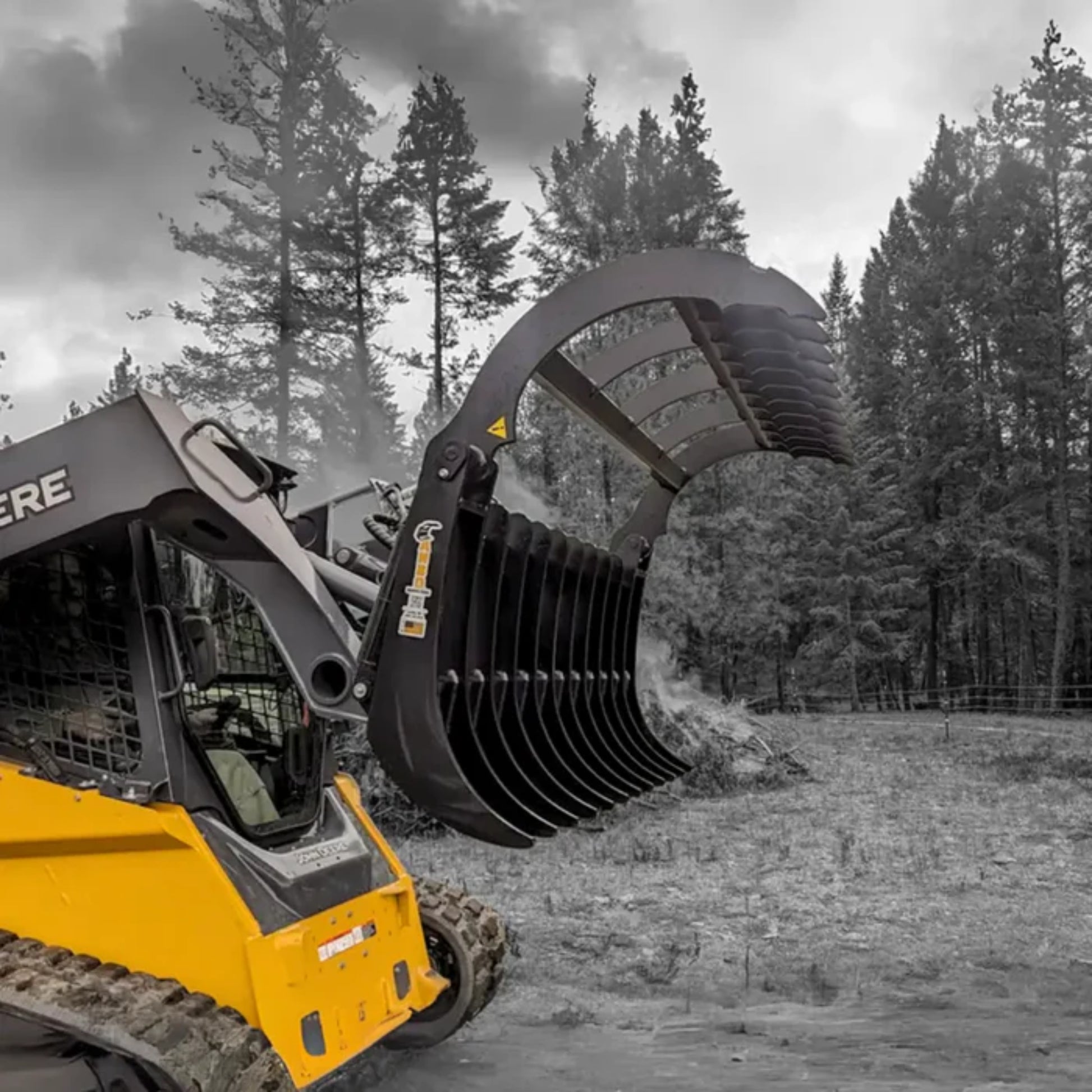

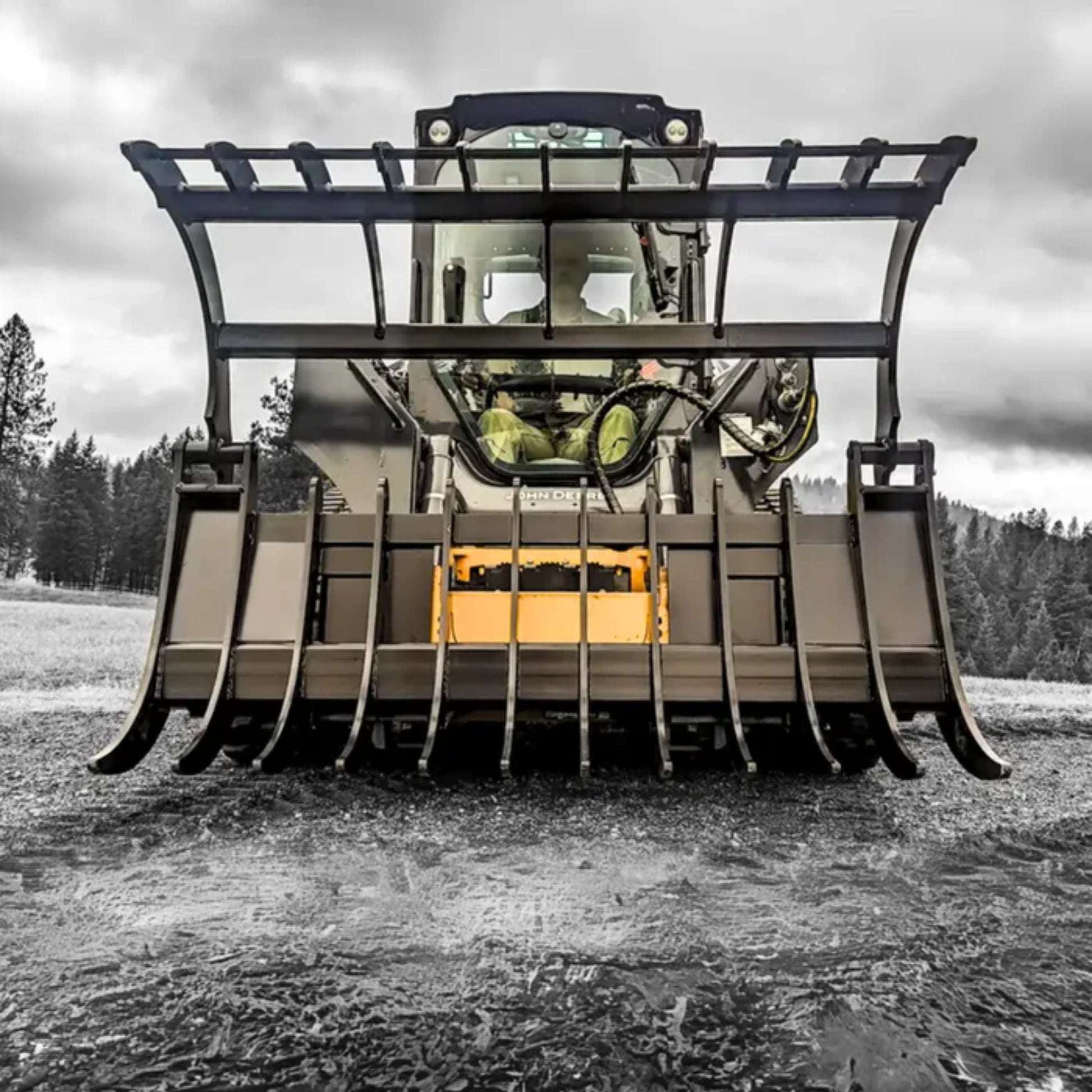

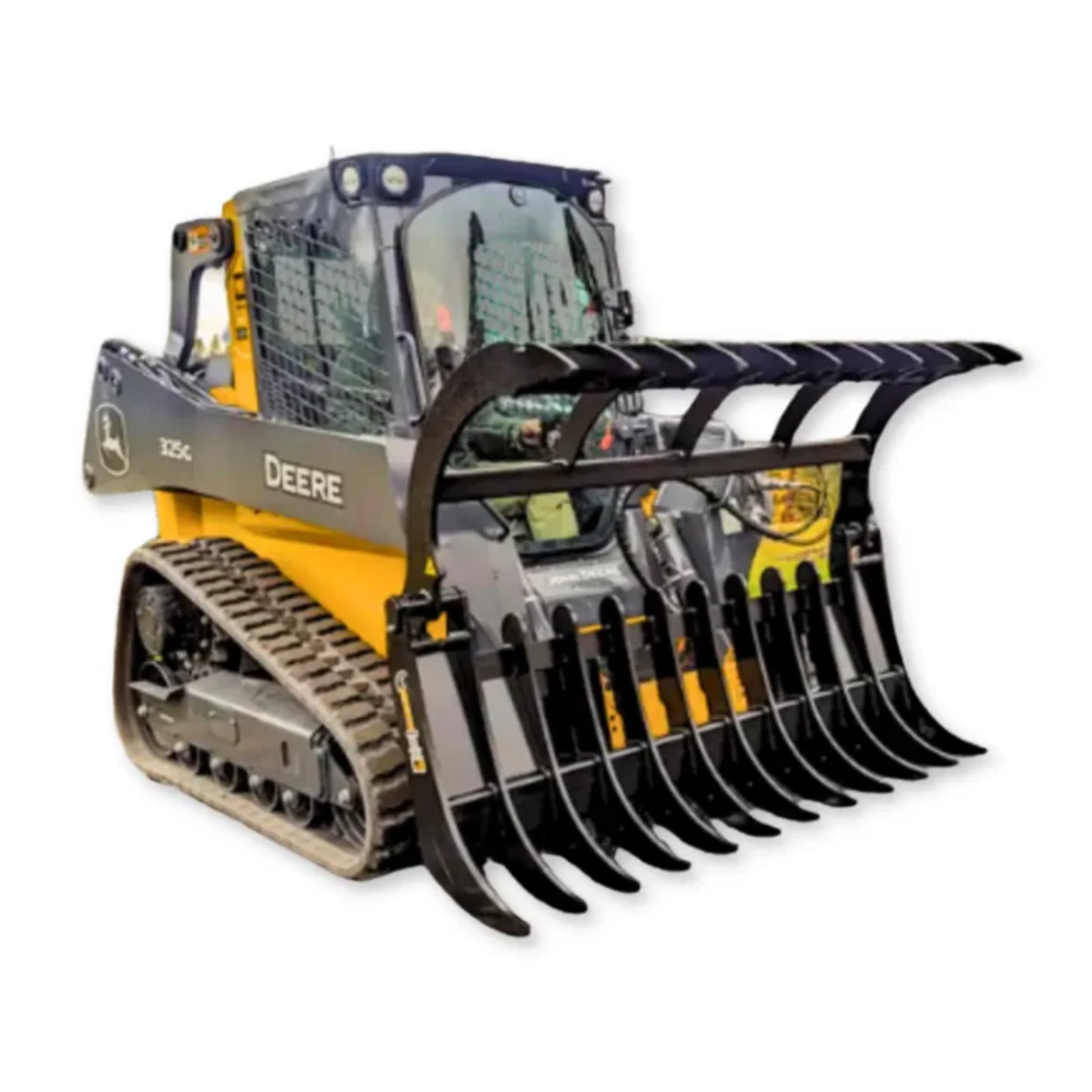

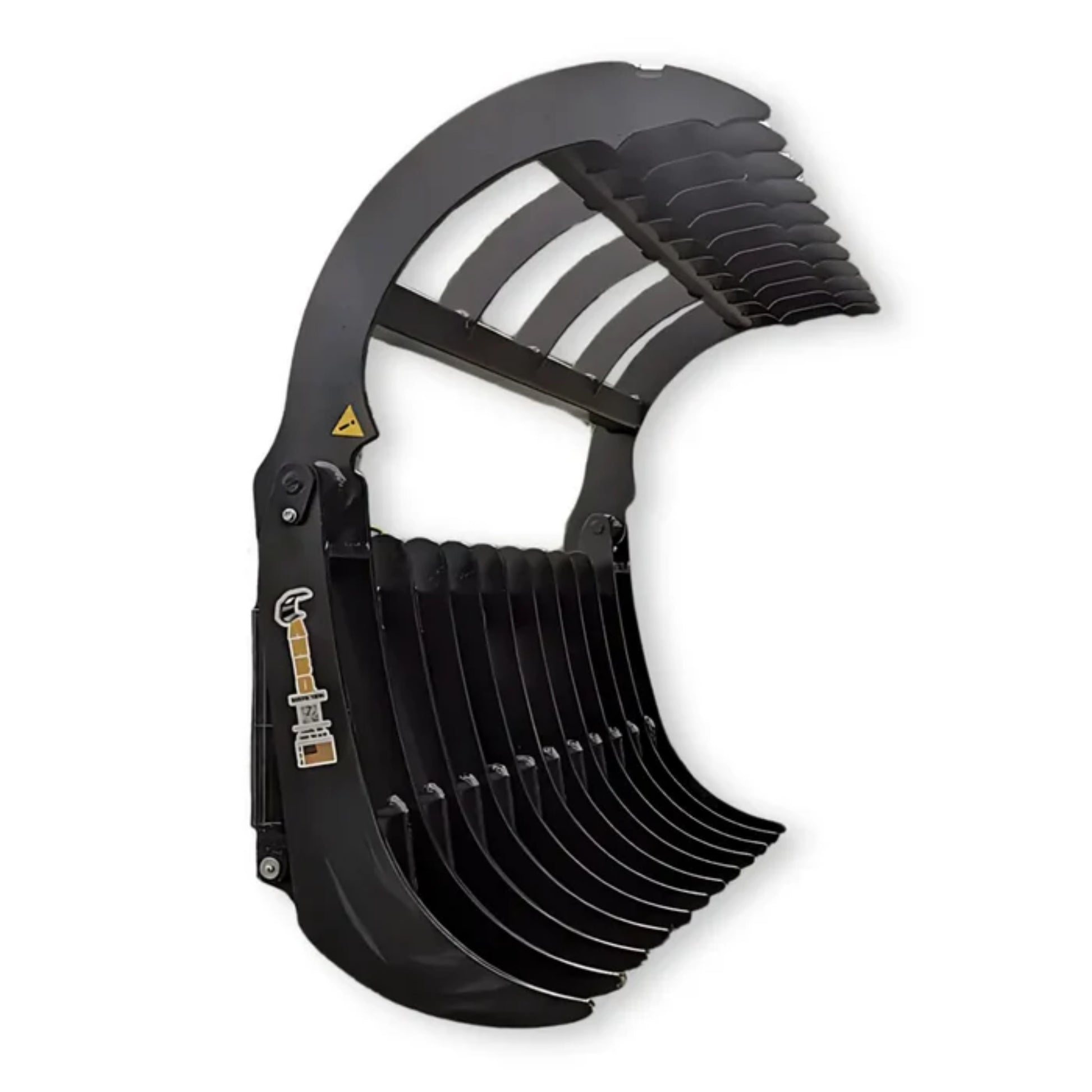

The GR120 Grapple Rake is built for machines up to 120 horsepower and delivers increased strength over the GR75 model with thicker, heavy-duty tines. Designed with short tines and a root-rake-style profile, this grapple excels at aggressive raking, digging, and material handling. Its clamshell-style design provides excellent control when sorting and moving heavy or bulky materials.
Ideal for farms, commercial jobsites, and residential properties, the GR120 handles rocks, brush, logs, stumps, firewood, roots, and general debris with ease. Crafted in the USA from AR400F steel, this grapple is engineered for exceptional durability and long service life. All pivot points are fully greaseable, hydraulic hoses are securely routed, and the attachment includes a two-year warranty with three-year cylinder coverage.
Key Features
- Built for machines up to 120 HP
- Thicker tines than the GR75 for maximum strength
- Short-tine, root-rake-style design for aggressive raking and digging
- Clamshell-style grapple for secure material handling
- Ideal for rocks, brush, logs, stumps, firewood, roots, and debris
- Made in the USA from AR400F steel
- Fully greaseable pivot points for smooth operation

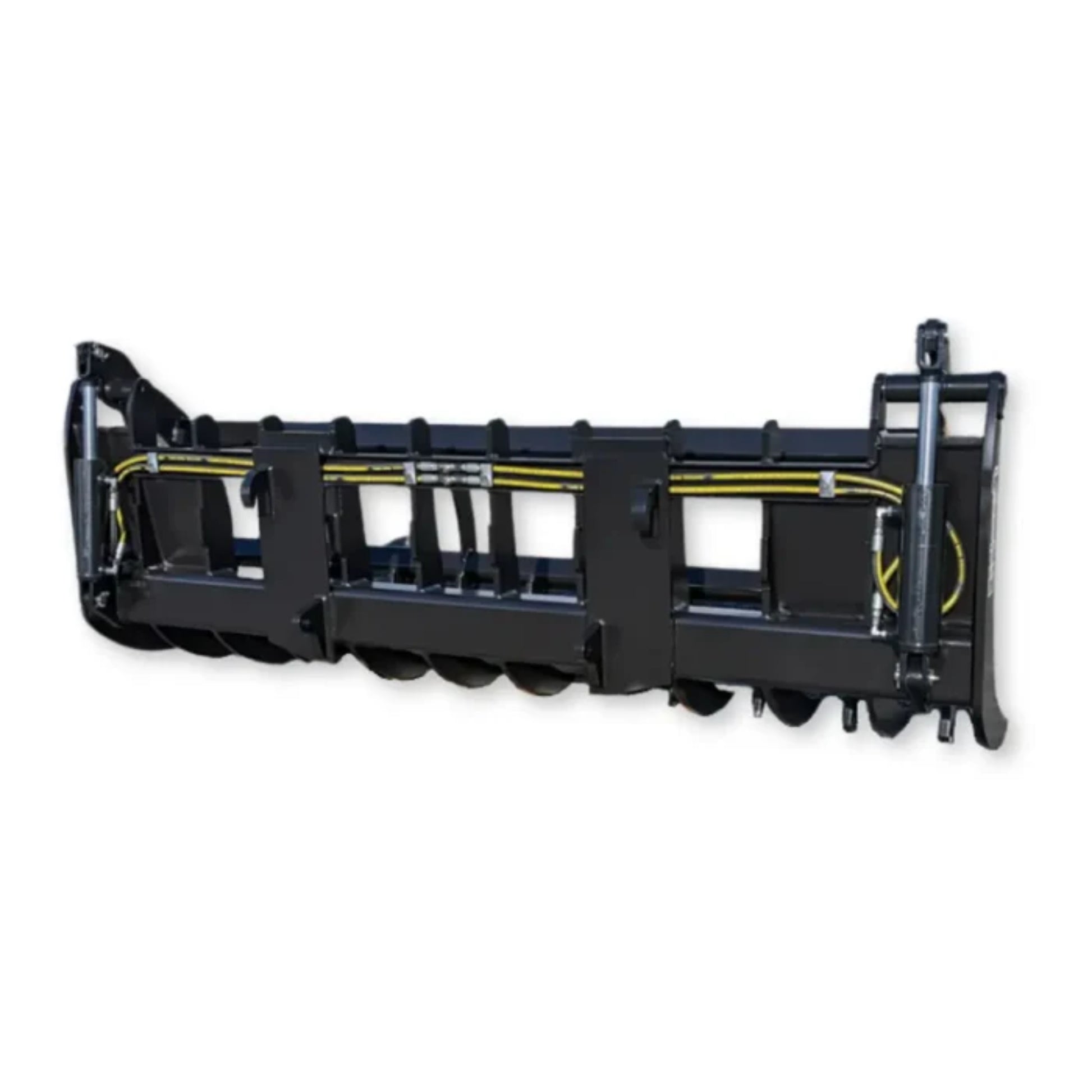

- Hydraulic hoses routed securely for protection and reliability
- Includes 2-year attachment warranty and 3-year cylinder warranty
We Accept
Specifications
| SKU | Width | Tine Space | Weight | Tine Size Outer :lnner | Max HP | Opening | Cylinders |
|---|---|---|---|---|---|---|---|
| GR120-6-62 | 62 | 6 | 757 lb | 3/4 :5/8 | 120 hp | 45 | 2.5x 8 |
| GR120-6-68 | 68 | 6 | 817 lb | 3/4 :5/8 | 120 hp | 45 | 2.5x 8 |
| GR120-6-75 | 75• | 6 | 894 lb | 3/4 :5/8 | 120 hp | 45 | 3x 8 |
| GR120-6-82 | 82 | 6 | 949 lb | 3/4 :5/8 | 120 hp | 45 | 3x 8 |
| GR120-6-88 | 88 | 6 | 1005 lb | 3/4 :5/8 | 120 hp | 45 | 3x 8 |
| GR120-6-95 | 95 | 6 | 1065 lb | 3/4 :5/8 | 120 hp | 45 | 3x 8 |
| ------ | ------ | ------ | ------ | ------ | ------ | ------ | ------ |
| GR120-8-63 | 63 | 8 | 744 lb | 3/4 :5/8 | 120 hp | 45 | 2.5x 8 |
| GR120-8-71 | 71 | 8 | 805 lb | 3/4 :5/8 | 120 hp | 45 | 3x 8 |
| GR120-8-80 | 80 | 8 | 869 lb | 3/4 :5/8 | 120 hp | 45 | 3x 8 |
| GR120-8-88 | 88 | 8 | 932 lb | 3/4 :5/8 | 120 hp | 45 | 3x 8 |
| GR120-8-97 | 97 | 8 | 1001 lb | 3/4 :5/8 | 120 hp | 45 | 3x 8 |
Anbo Warranty
ANBO Manufacturing provides a two-year warranty against manufacturer defects on all new attachments produced, beginning on the date of delivery to the original purchaser. During this warranty period, ANBO will replace any defective part at no cost, provided the part is properly packaged and returned to prevent damage during shipment.
This warranty does not cover defects or damage resulting from use beyond the rated capacity of the attachment, misuse, neglect, improper operation, accidents caused by incorrect hose installation or handling, unauthorized repairs or modifications, previously owned equipment, normal wear and tear on ground-engaging tools, routine maintenance needs, fork tines, disassembled hydraulic motors, or damage to hydraulic hoses.
Why Choose ANBO Manufacturing?
ANBO stands out as a true premium manufacturer, known for building their grapples exclusively from AR400F steel, quality and durability that are increasingly uncommon.
Machines & Attachments is proud to partner with ANBO Manufacturing and deliver their exceptional equipment to operators across the country.
