SKU:GR45-6-58
Couldn't load pickup availability
- Made in the USA
- Hassle Free Installation
- Order Tracking
- Over 40 Years Experience

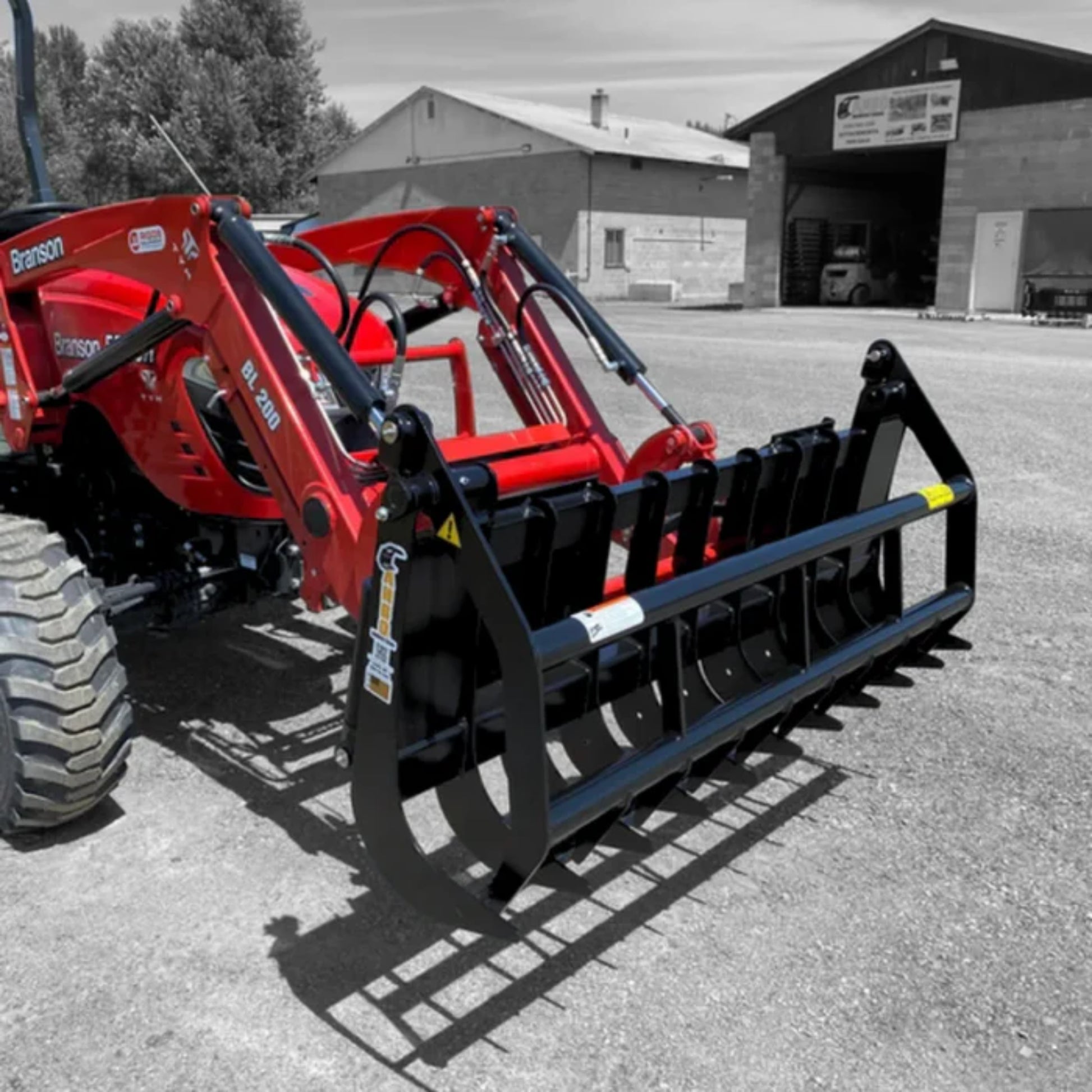

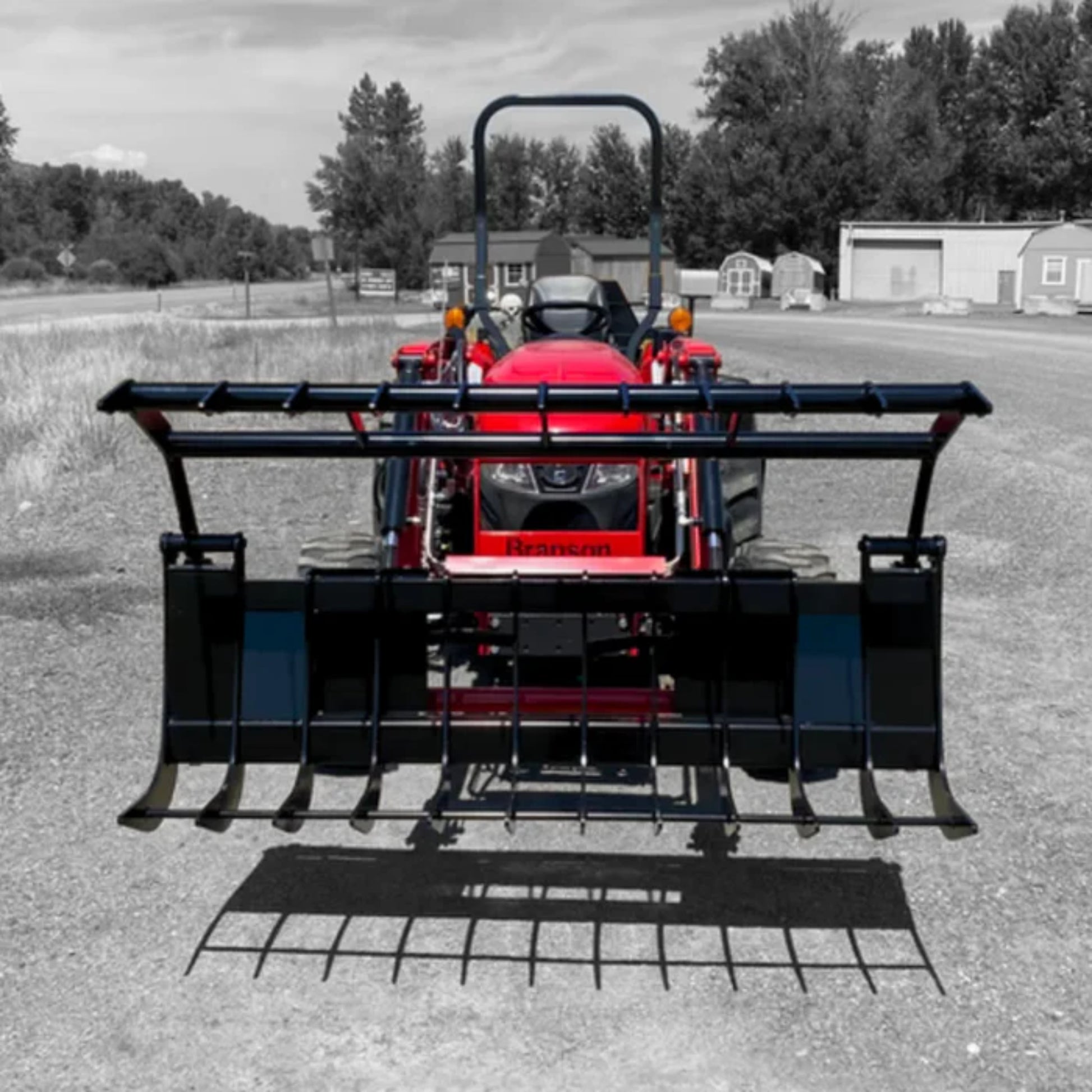

The Anbo GR45 Grapple Rake is built for machines 45 horsepower or less, offering a stronger and more robust design than the GR30 model. With thicker, rounded tines and an integrated rake bar, its clamshell-style layout makes raking, digging, and material handling smooth and efficient.
Ideal for hobby farms and residential properties, this versatile grapple excels at moving rocks, brush, logs, firewood, roots, and general debris. Crafted in the USA from AR400F steel, five times stronger than Grade 36, the GR45 provides exceptional durability for long-term use. All pivot points are greaseable, hydraulic hoses are securely routed, and the attachment is backed by a two-year warranty with three-year coverage on cylinders.
Key Features
- Built for machines 45 HP or less
- Thicker, rounded tines for added strength
- Clamshell-style design with rake bar for efficient raking and digging
- Moves rocks, brush, logs, firewood, roots, and general debris
- Made in the USA from AR400F steel—5× stronger than Grade 36
- Greaseable pivot points for smooth operation and long service life
- Secure hose routing for added protection and reliability
- Includes 2-year attachment warranty and 3-year cylinder warranty
We Accept
Specifications
| SKU | Tine Space | Width | Weight | Max HP | Tine Size Outer:Inner | Opening | Cylinders |
|---|---|---|---|---|---|---|---|
| GR45 | 6" | 58" | 348 lb | 45 hp | 3/8" : 3/8" | 36" | 2"x 6" |
| GR45 | 6" | 64" | 370 lb | 45 hp | 3/8" : 3/8" | 36" | 2"x 6" |
| GR45 | 6" | 71" | 394 lb | 45 hp | 3/8" : 3/8" | 36" | 2"x 6" |
| GR45 | 6" | 77" | 415 lb | 45 hp | 3/8" : 3/8" | 36" | 2"x 6" |
| GR45 | 6" | 83" | 438 lb | 45 hp | 3/8" : 3/8" | 36" | 2"x 6" |
Anbo Warranty
ANBO Manufacturing provides a two-year warranty against manufacturer defects on all new attachments produced, beginning on the date of delivery to the original purchaser. During this warranty period, ANBO will replace any defective part at no cost, provided the part is properly packaged and returned to prevent damage during shipment.
This warranty does not cover defects or damage resulting from use beyond the rated capacity of the attachment, misuse, neglect, improper operation, accidents caused by incorrect hose installation or handling, unauthorized repairs or modifications, previously owned equipment, normal wear and tear on ground-engaging tools, routine maintenance needs, fork tines, disassembled hydraulic motors, or damage to hydraulic hoses.
Why Choose ANBO Manufacturing?
ANBO stands out as a true premium manufacturer, known for building their grapples exclusively from AR400F steel, quality and durability that are increasingly uncommon.
Machines & Attachments is proud to partner with ANBO Manufacturing and deliver their exceptional equipment to operators across the country.
